HP CE516A Transfer Belt Cleaning Blade CP5525 M750 M775 — 90-Day Warranty
HP CE516A Transfer Belt Cleaning Blade CP5525 M750 M775 — 90-Day Warranty
Couldn't load pickup availability
HP CE516A Transfer Belt Cleaning Blade CP5525 M750 M775 — 90-Day Warranty
Fix Vertical Lines, Repeating Marks and Toner Contamination Fast

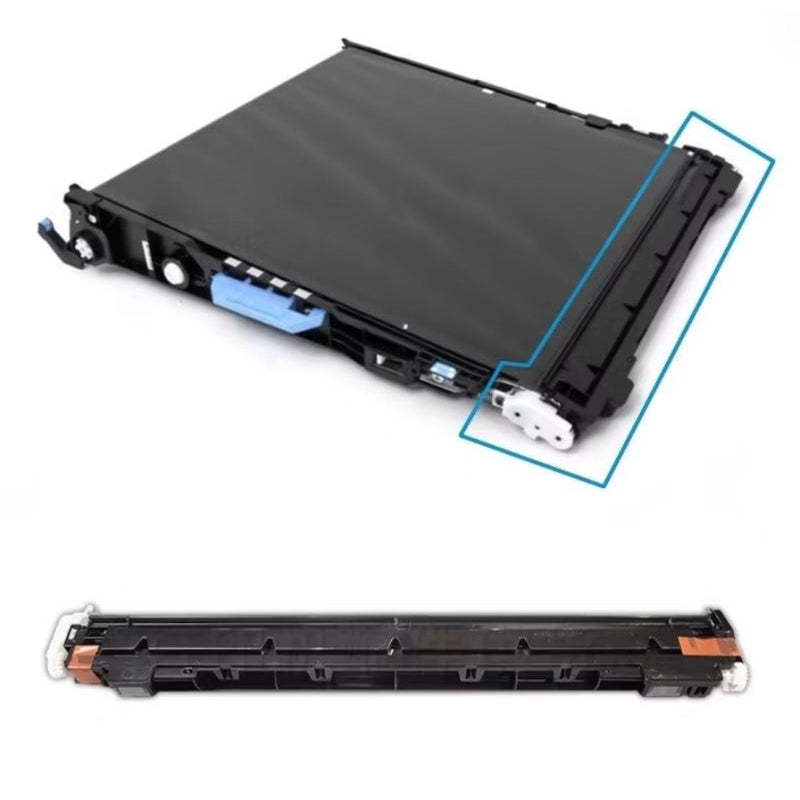

Compatible transfer belt cleaning blade with waste toner section for HP Colour LaserJet CP5525, M750 and M775 series
- Direct-fit cleaning blade with integrated waste toner section for the transfer belt assembly on HP Colour LaserJet CP5525, Enterprise M750 and Enterprise MFP M775 series
- OEM reference: HP CE516A
- Compatible part, produced to match OEM fit and material spec
- 90-day Printer Genie warranty against manufacturing defects
- UK supplier — courier delivery, tracked
Is This the Right Part?
| Vertical lines on printed pagesThin vertical lines running the length of the sheet are one of the most common signs the transfer belt cleaning blade has worn or become damaged. | Repeating marks down the pageMarks or defects that repeat at a regular interval down the page often point to a damaged section of the cleaning blade rather than the belt itself. |
| Grey background or toner hazeA cleaning blade that's no longer sealing properly lets toner residue build up on the belt, showing as a light grey cast or haze across the page. | Dirty colour prints or scattered tonerScattered toner inside the printer, or dirty-looking colour prints, can mean the waste toner section of the blade assembly has failed or is no longer collecting toner correctly. |
| Not the fault?Colour print quality defects can have more than one cause. If cleaning or replacing this blade doesn't resolve the issue, contact us and we'll help you narrow down the next step. | |
Specifications
| Component | Transfer belt cleaning blade with integrated waste toner section |
| Primary OEM part number | CE516A |
| Condition | Compatible — new, produced to match OEM fit and material spec |
| Target location | Transfer belt (ITB) unit — internal component, accessed via the transfer belt assembly |
| Quantity supplied | 1 × transfer belt cleaning blade with waste toner section |
| Warranty | 90-day Printer Genie warranty — covers manufacturing defects under normal use. Full terms in our Terms & Conditions. |
| Weight & delivery | 2kg — courier delivery, tracked |
Compatible Printers
This blade fits the transfer belt assembly on the following HP models. Contact us before ordering if your model is not listed.
| Model | Type |
| HP Colour LaserJet CP5525n | Printer |
| HP Colour LaserJet CP5525dn | Printer |
| HP Colour LaserJet CP5525xh | Printer |
| HP Colour LaserJet Enterprise M750dn | Printer |
| HP Colour LaserJet Enterprise M750n | Printer |
| HP Colour LaserJet Enterprise M750xh | Printer |
| HP Colour LaserJet Enterprise MFP M775dn | MFP |
| HP Colour LaserJet Enterprise MFP M775f | MFP |
| HP Colour LaserJet Enterprise MFP M775z | MFP |
What's Included
- 1 × Transfer Belt Cleaning Blade with integrated waste toner section (CE516A) for HP Colour LaserJet CP5525, M750 and M775 series
- Blade only — this is not a complete transfer belt unit
Install Notes
- Power off and unplug the printer before opening any internal panels.
- Access the transfer belt assembly following your printer's service documentation — this varies by model, and the belt unit typically needs to be released before the cleaning blade section is accessible.
- Handle the transfer belt surface with care and avoid touching it directly — residual toner around the blade area is normal.
- Remove the old blade/waste toner section and fit the replacement, checking orientation matches the original before reassembling.
- Reassemble and run several test prints to confirm the defect has cleared.
This part sits inside the transfer belt assembly. If you're not comfortable accessing this area, we'd recommend having it fitted by an engineer — contact us if you'd like guidance before starting.
Frequently Asked Questions
Is this a genuine or compatible part?
This is a compatible part, produced to match HP's original fit and material spec rather than a genuine HP component. It carries a 90-day Printer Genie warranty against manufacturing defects.
Is this the full transfer belt unit?
No — this is the cleaning blade with integrated waste toner section only, not a complete transfer belt unit. If you need the full assembly, contact us to check availability.
Does this fit both the CP5525 and M750/M775 series?
Yes — the CP5525, Enterprise M750 and Enterprise MFP M775 series share the same transfer belt cleaning blade assembly. See the Compatible Printers table above for the full model list.
The print defect is still there after fitting — what next?
Vertical lines, repeating marks and toner contamination can have more than one cause. If the fault continues after fitting, contact us and we can help diagnose the next step.
