Epson TM-T20II, USB, RS232 with AutoCutter and AC Adapter

Epson TM-T20II, USB, RS232 with AutoCutter and AC Adapter

£55.00 GBP
£55.00 GBP
Sale Sold out
Shipping calculated at checkout.

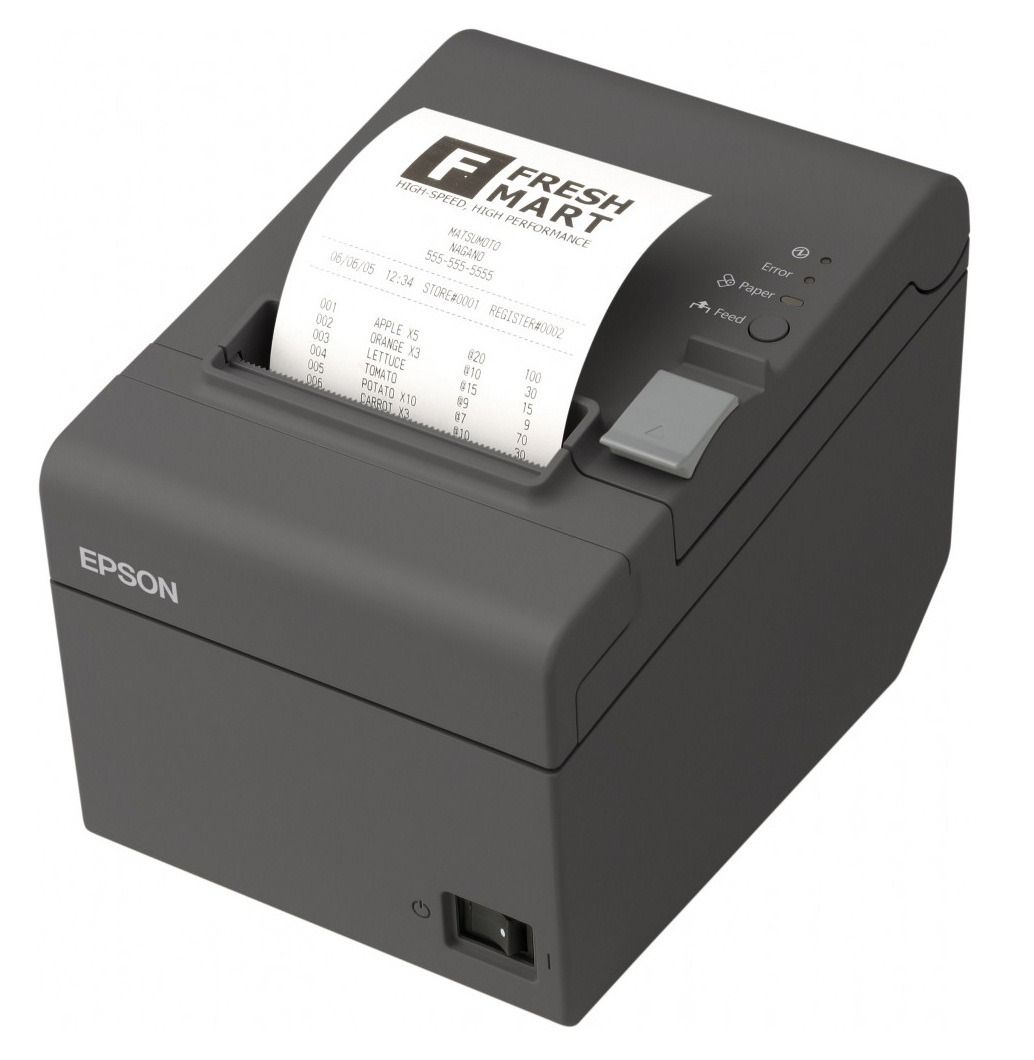

EPOS Receipt Printer – Epson TM-T20II (002)

Fast, Reliable Printing for Point-of-Sale

Cost-effective, dependable receipt printing with USB + RS-232 (Serial) built in, auto cutter, and external AC adapter included.

Key Highlights

  • Print Speed: 200 mm/s at 203 dpi for clear text and logos
  • Paper: 80 mm or 58 mm thermal roll • Max roll Ø 83 mm • Easy drop-in loading
  • Cutter: Auto cutter rated to 1.5 million cuts
  • Reliability: Print head life 100 km • MTBF 360,000 hours
  • Interfaces: USB-B (printer) · RS-232 (Serial) · Cash drawer kick port (RJ-11/12)
  • Emulation: ESC/POS
  • Footprint: Compact 140 × 199 × 146 mm (W×D×H) • 1.7 kg • Dark Grey (EDG)

POS Compatibility

Works with common POS software over USB or Serial. Confirm your POS/app supports Epson ESC/POS on your chosen interface before purchase.

  • Devices/OS: Windows · macOS (CUPS) · Some Android POS (via USB/Serial)
  • Drivers/SDKs: Epson APD (Windows) · OPOS/JPOS · Mac/CUPS

Connectivity Options

Interface Included Notes
USB-B (Printer) Yes Built-in USB 2.0
Serial (RS-232) Yes DB9/RS-232; DKD port present
Ethernet (LAN) No (use 002 has USB+Serial) See Ethernet variants for network printing
Bluetooth / Wi-Fi No Not available on this 002 model
Cash Drawer Port Yes RJ-11/12, opens on print

Detailed Specifications

Print Method Thermal line printing
Resolution 203 dpi
Max Speed 200 mm/s
Paper Width 80 mm (79.5 ± 0.5 mm) or 58 mm (57.5 ± 0.5 mm)
Roll Diameter Max Ø 83 mm
Cutter Auto cutter • Life 1.5 million cuts
Reliability Head 100 km • MTBF 360,000 hours
Emulation ESC/POS
Dimensions (W×D×H) 140 × 199 × 146 mm
Weight 1.7 kg
Color Epson Dark Grey (EDG)
Power External adapter (PS-180) • 100–240 V AC

What’s in the Box

  • Epson TM-T20II (002) receipt printer
  • AC adapter (PS-180) + AC power cable

Warranty & Support

  • Standard warranty: 6 month (return-to-base)
  • Optional extended warranties availableI
  • Email support add-on at checkout

Recommended Add-Ons

  • 80 mm Thermal Paper Rolls (Max Ø 83 mm)
  • Cash Drawer Cable (RJ-11/12)
  • Interface Cables (USB-B / RS-232 null-modem)
  • External Buzzer (OT-BZ20)
FAQs

Will this work with my POS?
Most POS apps that support Epson ESC/POS over USB or Serial will work with this 002 configuration. Check your POS provider’s list for “TM-T20II (USB/Serial)”.

Does it open my cash drawer?
Yes — the DKD port can trigger compatible 24V drawers via RJ-11/12 when the receipt prints.

Is Ethernet/Wi-Fi available?
Not on the 002 model. Choose an Ethernet or wireless variant if you need network/iPad-over-network printing.

Technical Details

  • Model code / SKU: TM-T20II (002) — C31CD52002 (EU)
  • Variant summary: Built-in USB + Serial; PS-180 AC adapter included; EDG (dark grey) chassis
  • Commands/Emulation: ESC/POS
  • Drivers: Epson APD (Windows), OPOS/JPOS; Mac/CUPS
  • Compliance: CE · UL/CSA (region dependent) · RoHS
