Ricoh AF03-2094 Paper Feed Roller Compatible Replacement New
Ricoh AF03-2094 Paper Feed Roller Compatible Replacement New
Regular price
£3.50 GBP
Regular price
Sale price
£3.50 GBP
Unit price
/
per
Shipping calculated at checkout.
Condition: New
Couldn't load pickup availability
New

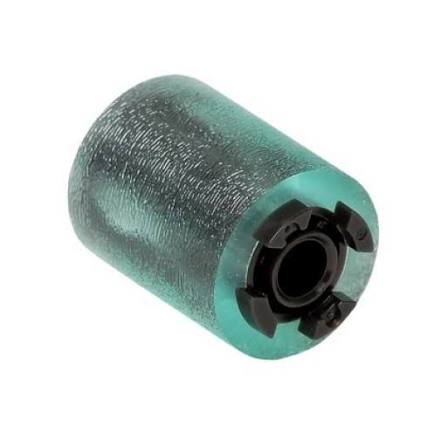

Ricoh AF03-2094 Paper Feed Roller
Paper not feeding, or jamming on the way in?
A compatible paper feed roller for Ricoh machines that use part AF03-2094 — the wear part behind most tray pick-up and feed faults.
- Compatible replacement for Ricoh part AF03-2094
- Restores grip when a worn roller stops lifting paper from the tray
- Fixes recurring pick-up failures, misfeeds and tray jams caused by a glazed or worn roller
- New — compatible replacement part
- 90-day warranty against manufacturing defects
- UK supplier — despatched from our warehouse
- Not sure this is the right part for your model? Contact us and we will confirm before you order
Is This the Right Part?
| Paper not picking up from the trayThe printer sounds like it is trying to pull paper but the sheet stays put. A glazed or worn feed roller has lost the grip needed to lift it from the stack. | Recurring jams as paper entersJams that happen repeatedly at the point paper enters the feed path are commonly a worn feed roller pulling the sheet through unevenly. |
| Paper slipping or feeding skewedIf paper slips before it reaches the registration rollers, or enters at an angle, a worn roller surface is usually the cause. A new roller restores correct feed. | Not sure which part your model needs?Feed faults can also come from a separation roller or pad. If you are not certain AF03-2094 is the part for your machine, contact us with your model number and we will confirm before you order. |
Specifications
| Component | Paper feed roller |
| Part reference | AF03-2094 |
| Brand | Ricoh (compatible replacement) |
| Condition | New — compatible replacement part |
| Quantity supplied | 1 × paper feed roller |
| Warranty | 90 days against manufacturing defects — normal wear not covered |
Which Printers Does It Fit?
This paper feed roller (Ricoh part AF03-2094) fits the following Ricoh, Lanier and Savin models. If your exact model or regional variant is not listed, contact us with your model number and we will confirm fitment before you order.
Ricoh — and rebadged equivalents
| Ricoh Aficio MP C 2003 | Ricoh Aficio MP C 2003 SP | Ricoh Aficio MP C 2003 ZSP |
| Ricoh Aficio MP C 3003 sp | Ricoh Aficio MP C 4503 SP | Ricoh Aficio MP C 5503 SP |
| Ricoh Aficio MP C 6003 SP | Ricoh Aficio MP3054SP | Ricoh Aficio MP3554SP |
| Ricoh Aficio MPC6502SP | Ricoh Aficio MPC8002SP | Ricoh IM C 400 F |
| Ricoh IM C 4500 | Ricoh IM C 6000 | Ricoh MP4054 |
| Ricoh MP5055SP | Ricoh MP6055SP | Ricoh Pro C5110s |
| Ricoh SPC840DN | Ricoh SPC842DN | Ricoh Aficio MPC3004ASP |
| Ricoh Aficio MPC3004SP | Ricoh Aficio MPC3503SP | Ricoh MP 2554SP |
| Ricoh MP 3054SP | Ricoh MP 3554SP | Ricoh MP 4054SP |
| Ricoh MP 4055SP | Ricoh MP C3003 | Ricoh MP C3004 |
| Ricoh MP C3004ex | Ricoh MP C3503 | Ricoh MP C3504 |
| Ricoh MP C3504ex | Ricoh MP C4503 | Ricoh MP C5503 |
| Ricoh MP C6003 | Ricoh MP C6004 | Ricoh MP C6004ex |
| Ricoh MP C6502SP | Ricoh MP C8002SP | Ricoh PB3170 |
| Ricoh PB3230 | Ricoh Pro C5100s | Ricoh RT3030 |
| Ricoh SP 8400DN | Ricoh Aficio 3035 | Ricoh Aficio 3045 |
| Ricoh Aficio MP 3500 | Ricoh Aficio MP 4000 | Ricoh Aficio MP 5000 |
| Ricoh Aficio MP 5001 | Ricoh Aficio MP 5002 | Ricoh Aficio MPC 3000 |
| Ricoh Aficio MPC 3001 | Ricoh Aficio MPC 3002 | Ricoh Aficio MPC 3501 |
| Ricoh Aficio MPC 3502 | Ricoh Aficio MPC 400 | Ricoh Aficio MPC 4500 |
| Ricoh Aficio MPC 4501 | Ricoh Aficio MPC 4502 | Ricoh Aficio MPC 5501 |
| Ricoh Aficio MPC 5502 | Ricoh Aficio MP 4001 | Ricoh Aficio MPC 2000 |
| Ricoh Aficio MPC 2500 | Ricoh Aficio MPC 3500 | Ricoh Aficio MP 4500 |
| Ricoh Aficio MPC 300 | Ricoh Aficio MP 4002 | Ricoh MP 2554 |
| Ricoh MP 2555 | Ricoh MP 3054 | Ricoh MP 3554 |
| Ricoh MP 3555 | Ricoh MP 4055 | Ricoh MP 5054 |
| Ricoh MP 5055 | Ricoh MP 6054 | Ricoh MP 6055 |
| Ricoh MP C2004 | Ricoh MP C2011 | Ricoh MP C2504 |
| Ricoh MP C5504 | Ricoh MP C8002 | Ricoh MP 2553 |
| Ricoh MP 3053 | Ricoh MP 3353 | Ricoh MP C401 |
| Ricoh MP C2003 | Ricoh MP C2503 | Ricoh MP C501SP |
| Ricoh Pro C5200s | Ricoh Pro C5210s | Ricoh Aficio SPC 430 |
| Ricoh Aficio SPC 431 | Ricoh MP C4504 | Ricoh IM C3000 |
| Ricoh IM C3500 | Ricoh IM C5500 |
Lanier — and rebadged equivalents
| Lanier MP 2554SP | Lanier MP 3054SP | Lanier MP 3554SP |
| Lanier MP 4055SP | Lanier MP 5055SP | Lanier MP 6055SP |
| Lanier MP C3003 | Lanier MP C3004 | Lanier MP C3503 |
| Lanier MP C3504 | Lanier MP C4503 | Lanier MP C5503 |
| Lanier MP C6003 | Lanier MP C6004 | Lanier MP C6502SP |
| Lanier MP C8002SP | Lanier Pro C5100s | Lanier Pro C5110s |
| Lanier SP C840dn | Lanier SP C842dn |
Savin — and rebadged equivalents
| Savin MP 2554SP | Savin MP 3054SP | Savin MP 3554SP |
| Savin MP 4055SP | Savin MP 5055SP | Savin MP 6055SP |
| Savin MP C3003 | Savin MP C3004 | Savin MP C3004ex |
| Savin MP C3503 | Savin MP C3504 | Savin MP C3504ex |
| Savin MP C4503 | Savin MP C5503 | Savin MP C6003 |
| Savin MP C6004 | Savin MP C6502SP | Savin MP C8002SP |
| Savin Pro C5100s | Savin Pro C5110s | Savin SP C840dn |
| Savin SP C842dn |
What's Included
- 1 × paper feed roller (compatible replacement for Ricoh AF03-2094)
Install Notes
- Power off and unplug the printer.
- Locate the feed roller in the paper path or tray pick-up assembly for your model.
- Release the old roller from its shaft, noting its orientation before removing it.
- Fit the new roller in the same orientation and clip it back into place.
- Clean adjacent feed surfaces with a lint-free cloth if they are contaminated, then reassemble and run several test prints to confirm stable feeding.
Warranty
90-day Printer Genie warranty — covers manufacturing defects. Normal wear from use is not covered. Excludes incorrect installation, physical damage, electrical damage, misuse and faults elsewhere in the printer. Full terms in our Terms & Conditions.
