Kyocera M5521 P5021 Transfer Belt Cleaning Blade — 90-Day Warranty
Kyocera M5521 P5021 Transfer Belt Cleaning Blade — 90-Day Warranty
Couldn't load pickup availability
Kyocera M5521 P5021 Transfer Belt Cleaning Blade — 90-Day Warranty
Fix Vertical Lines, Grey Background and Toner Contamination Fast

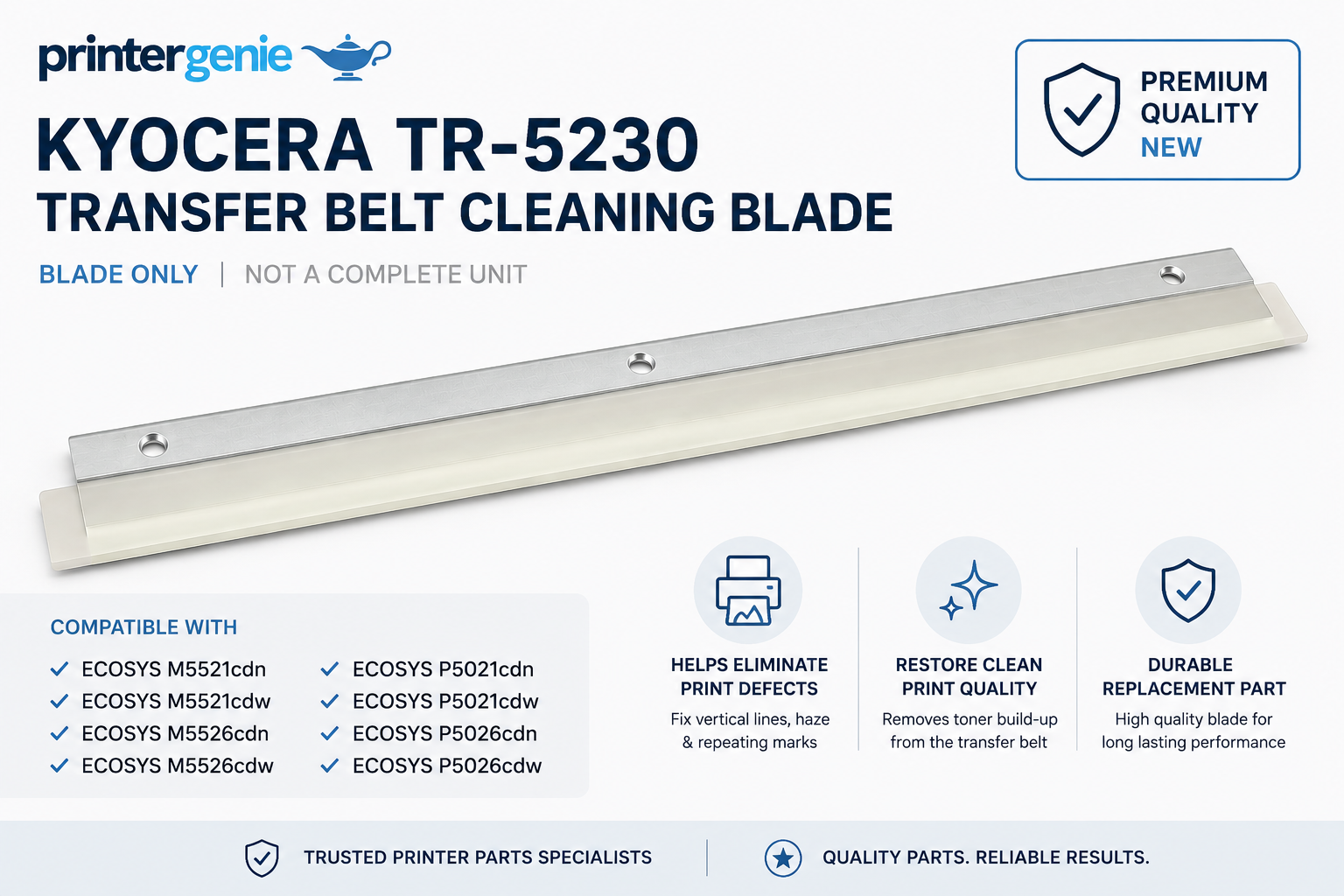

Compatible transfer belt cleaning blade for Kyocera ECOSYS M5521, M5526, P5021 and P5026 printers
- Direct-fit cleaning blade for the transfer belt (ITB) assembly on Kyocera ECOSYS M5521, M5526, P5021, P5026, MA2100 and PA2100 series
- Printer Genie part number: TBBM5521-PG — fits within the TR-5230 transfer belt assembly (also referenced as 302R793070, 302R793071, 302R793072)
- Compatible part, produced to match OEM fit and material spec
- 90-day Printer Genie warranty against manufacturing defects
- UK supplier — held in stock, ready to ship
Is This the Right Part?
| Fine vertical lines down the pageIf pages are showing thin vertical lines running the full length of the sheet, a worn transfer belt cleaning blade is one of the most common causes. | Grey background or toner hazeA cleaning blade that's no longer sealing properly lets toner residue build up on the belt, which shows as a light grey cast across the page. |
| Toner contamination inside the printerLoose toner around the transfer belt area, rather than in the usual cartridge zones, often points to a failed cleaning blade. | Not the fault?Print defects can have more than one cause. If cleaning or replacing this blade doesn't resolve the issue, contact us and we'll help you narrow down the next step. |
Specifications
| Component | Transfer belt cleaning blade — fits within the transfer belt (ITB) assembly |
| Printer Genie part number | TBBM5521-PG |
| Fits transfer belt assembly | TR-5230 (also referenced as 302R793070, 302R793071, 302R793072) |
| Condition | Compatible — new, produced to match OEM fit and material spec |
| Target location | Transfer belt (ITB) unit — internal component, accessed via the transfer belt assembly |
| Quantity supplied | 1 × transfer belt cleaning blade |
| Warranty | 90-day Printer Genie warranty — covers manufacturing defects under normal use. Full terms in our Terms & Conditions. |
| Weight & delivery | [WEIGHT TO CONFIRM] — courier delivery, tracked |
Compatible Printers
This blade fits the transfer belt (ITB) assembly on the following Kyocera ECOSYS models. Contact us before ordering if your model is not listed.
| Model | Type |
| Kyocera ECOSYS M5521cdn | MFP |
| Kyocera ECOSYS M5521cdw | MFP |
| Kyocera ECOSYS M5526cdn | MFP |
| Kyocera ECOSYS M5526cdw | MFP |
| Kyocera ECOSYS MA2100cfx | MFP |
| Kyocera ECOSYS MA2100cwfx | MFP |
| Kyocera ECOSYS P5021cdn | Printer |
| Kyocera ECOSYS P5021cdw | Printer |
| Kyocera ECOSYS P5026cdn | Printer |
| Kyocera ECOSYS P5026cdw | Printer |
| Kyocera ECOSYS PA2100cx | Printer |
| Kyocera ECOSYS PA2100cwx | Printer |
What's Included
- 1 × Transfer Belt Cleaning Blade (TBBM5521-PG) for Kyocera ECOSYS M5521, M5526, P5021, P5026, MA2100 and PA2100 series
- Blade only — no other components supplied
Install Notes
- Power off and unplug the printer before opening any internal panels.
- Access the transfer belt (ITB) assembly following your printer's service documentation — this varies by model, and the belt unit typically needs to be released before the cleaning blade is accessible.
- Handle the transfer belt surface with care and avoid touching it directly — residual toner around the blade area is normal.
- Remove the old blade and fit the replacement, checking orientation matches the original before reassembling.
- Reassemble and run several test prints to confirm the defect has cleared.
This part sits inside the transfer belt assembly. If you're not comfortable accessing this area, we'd recommend having it fitted by an engineer — contact us if you'd like guidance before starting.
Frequently Asked Questions
What does "Compatible" mean for this part?
This is a compatible part, produced to match Kyocera's original fit and material spec rather than a genuine Kyocera component. It carries a 90-day Printer Genie warranty against manufacturing defects.
Which transfer belt assembly does this fit?
This blade fits within the Kyocera TR-5230 transfer belt assembly (also referenced as 302R793070, 302R793071 and 302R793072), used across the ECOSYS M5521, M5526, P5021, P5026, MA2100 and PA2100 series.
The print defect is still there after fitting — what next?
Vertical lines, grey background and toner contamination can have more than one cause. If the fault continues after fitting, contact us and we can help diagnose the next step.
